What Are Exhaust Headers? A Complete Beginner's Guide
AMVirtuo Team
Introduction
If you're into cars, you've probably seen those shiny tube sets under the hoods of modified trucks and Mustangs at shows or on Instagram. They look good — there's no denying it. But the real question most people have is simpler: what do those things actually do, and are they worth the money?
That's what this guide covers. No engineering degree needed. We'll go through what headers are, how they work, what kind of difference you'll actually notice behind the wheel, and how to pick the right set for your build — without the marketing fluff.
Key Takeaways
- Headers replace your stock cast-iron manifold with individual steel tubes — one per cylinder
- Typical gains: 5–25 HP depending on header type and engine (long tubes > shorties)
- Shorty headers: bolt-on install, works with factory emissions equipment; Long tube headers: bigger power gains, more involved install
- 304 stainless steel resists rust and corrosion far better than cast iron; ceramic coating extends life further
- Emissions laws vary by location — always check local regulations before buying or installing any aftermarket exhaust part
- A tune is recommended for long tube headers but usually not required for shorty headers
What Exactly Are Exhaust Headers?
The Short Version
Exhaust headers are an aftermarket performance part that replaces your stock exhaust manifold — the heavy iron component bolted to the side of your engine. Their job sounds simple: collect hot exhaust gas from each cylinder after combustion and funnel it into one pipe heading toward the rest of the exhaust system.
The way headers do that job is fundamentally different from a stock manifold. That difference is where the horsepower comes from.
Stock Manifold vs. Headers: Side by Side
Pop the hood on a stock vehicle and you'll see a rough-cast lump of cast iron bolted to each side of the engine. Dark grey, heavy, with internal passages that merge all cylinders into one outlet almost immediately. It was designed to be cheap to manufacture, quiet enough for drive-by noise regulations, and durable enough to last the warranty period.
A set of headers looks nothing like that. Individual steel tubes — one per cylinder — curving away from the engine in smooth, equal-length arcs before merging at a polished collector. Each tube is precisely bent using mandrel bending, which keeps the inside diameter consistent through every bend (no kinks, no restrictions). Because each cylinder gets its own dedicated tube, the exhaust pulses never collide the way they do inside a cramped stock manifold.
Left: Stock cast iron manifold — rough, heavy, restrictive. Right: T304 stainless headers — smooth tubes, mandrel bends, optimized flow.
| Feature | Stock Manifold | Aftermarket Headers |
|---|---|---|
| Material | Cast iron | Stainless steel (304 or 409) |
| Design | Single cast piece, shared chamber | Individual tubes, equal length |
| Weight | Heavy | Lighter |
| Exhaust Flow | Restricted — multiple lanes crammed into one | Optimized — each cylinder gets its own path |
| Sound | Quiet, factory-muted | Deeper, more aggressive tone |
| Cost | $100-$400 (OEM replacement) | $150-$400 (aftermarket upgrade) |
How Do Headers Work? The Science Behind the Upgrade
To understand why headers can increase power, you need to know about two things: the problem (backpressure) and the solution (scavenging). It's simpler than it sounds.
The Problem: Backpressure
Every time a cylinder fires, high-pressure exhaust gas needs to get out fast. The piston pushes that gas out during the exhaust stroke, and pushing takes energy. The harder it is for the gas to escape, the more power the engine wastes just trying to clear itself out.
A stock cast-iron manifold is basically four (or six, or eight) lanes of traffic forced into a single-lane tunnel right at the exit. The pulses bang into each other, create turbulence, and push back against the next cylinder trying to exhale. That resistance is backpressure.
The Solution: Scavenging
- Each cylinder gets its own tube. No traffic jam. Each pulse travels down a smooth-walled tube and builds velocity.
- Equal-length tubes. Every pulse reaches the collector at roughly the same moment — timing matters here.
- The vacuum effect. As a fast-moving pulse shoots down its tube, it leaves a low-pressure zone behind it. During valve overlap (when both intake and exhaust valves are briefly open), that low pressure helps pull fresh air-fuel mixture in while pulling out remaining exhaust gas. The exhaust system does some of the work for free.
The result: the engine fills its cylinders more completely on each intake stroke. More air and fuel in means more power out.
Scavenging principle: Equal-length tubes let exhaust pulses arrive at the collector in sync, creating a vacuum that pulls fresh air-fuel mixture into the cylinder.
The Key Takeaway
Headers don't "create" horsepower. They recover power your engine was already losing to a restrictive stock manifold. The potential was there all along — the headers just uncork it.
Headers vs. Stock Manifold: The Real-World Differences
For a full head-to-head comparison covering installation complexity, emissions considerations, and dyno results between these two options, check out our detailed guide: Headers vs Stock Manifold: Which One Should You Upgrade First?
Design: Cast Iron vs. Precision Steel
A stock manifold gets poured into a mold. Internal passages come out rough and uneven because they were designed around manufacturing cost and packaging convenience, not flow efficiency.
Headers get fabricated. Tubes are cut, bent, and welded individually. Interior walls stay smooth from start to finish. Tube diameter, bend radius, and overall length are chosen based on the engine's characteristics, not what fits easiest on the assembly line.
Material: Iron That Rots vs. Steel That Lasts
Most stock manifolds are cast iron — cheap, handles heat fine, lasts a while. But it rusts, can crack after enough heat cycles, and holds heat under the hood like a skillet left on the stove.
Aftermarket headers use two main grades of stainless steel:
- 409 stainless — Budget-friendly option with titanium for heat resistance. Develops a brownish patina over time. Still plenty durable for most applications.
- 304 stainless — Higher-end choice with more chromium and nickel. Better corrosion resistance, stays bright longer in wet climates or areas with road salt.
Sound: Muffled vs. Alive
Start a stock car and you hear what the manufacturer intended: a soft hum that barely stands out above the cooling fan. Polite. Inoffensive. Boring, if we're being honest.
Put headers on that same engine and the idle drops into a deeper, throatier rumble. You can hear the distinct firing order — each cylinder contributing its own note. Rev it and the sound climbs clean instead of staying muffled. Keep your stock muffler on and it won't wake the neighborhood, but it definitely sounds like something other than an appliance now.
Where Are Headers Located?
Headers bolt directly onto the cylinder heads, sitting right at the front of the exhaust chain:
Exhaust Flow Path: Engine → Headers / Manifold → Downpipe → Catalytic Converter → Resonator → Muffler → Tailpipe
V-engines (V6, V8) get two sets — one on each bank. Inline engines (I4, I6) run a single set along one side.
One thing you don't appreciate until you're actually working under a hood: this area runs seriously hot. After a highway drive, hover your hand near them (not touching — seriously) and you can feel the radiating heat. Gas temps inside those tubes exceed 1,400°F. Hot enough to damage nearby plastic and rubber over time. That's why many header manufacturers offer ceramic coating — it cuts underhood temperatures and keeps the tubes looking new instead of turning blue and purple from heat cycling.
What Do Headers Actually Do for Your Car?
Horsepower and Torque: The Numbers
| Engine Type | Shorty Headers | Long Tube Headers |
|---|---|---|
| V8 (5.0L, 6.2L) | +5 to +15 HP | +15 to +25 HP |
| V6 | +5 to +12 HP | +10 to +20 HP |
| 4-Cylinder | +5 to +10 HP | +5 to +15 HP |
Throttle Response: What You Actually Feel
Horsepower numbers on paper don't tell the whole story. The change most owners notice first isn't at wide-open throttle — it's everyday driving stuff. Rolling into the pedal to pass, merging onto the freeway, pulling away from a stoplight. With a stock manifold there's a slight lag before the engine really commits. With headers, that gap closes. Revs come up faster, the car feels more willing, and the throttle pedal feels more directly connected to what's happening at the wheels. Not a night-and-day transformation, but once you've driven with headers for a week, going back to stock feels noticeably lazier.
Fuel Economy
Don't buy headers to save money on gas. Reduced backpressure might help slightly during steady cruising, but real-world observations from owner forums show most people end up with about the same mileage — or slightly worse — because the car is more fun to drive and people tend to use the extra response. More details in FAQ #6 below.
Tuning: Do You Need It?
Shorty headers? Usually no need. Modern ECUs handle the minor flow change without issues. Most people bolt shorties on and drive away with no check engine light.
Long tube headers? A tune is strongly recommended. Long tubes change exhaust dynamics substantially and often move O2 sensors to different positions. Without a tune, you leave power on the table and risk running non-optimal fuel trims. See FAQ #5 for details.
Types of Exhaust Headers
Different builds call for different tools. Here's how to match the header type to what you're doing with the car.
Left: Shorty headers — compact bolt-on design. Center: Mid-length — the middle ground. Right: Long tube headers — maximum scavenging, maximum gains.
Long Tube Headers
Longest primary tubes (30–40+ inches), collector positioned farther downstream toward the middle of the car. These produce the biggest power numbers, especially in the mid-to-high RPM range where scavenging has room to work.
👉 Check out our long tube headers for 2007-2014 Silverado/Sierra — full-length 304 stainless primaries with merged collector, typically delivering 15-25 HP gains on GM V8 truck engines when paired with appropriate tuning.
Best for: Track days, drag strip, weekend toys, or anyone building a serious naturally aspirated package.
Trade-offs: More involved installation — may need to temporarily lift or shift the engine, modify steering shaft clearance, or work around other components. Always verify compliance with local emissions laws before purchasing or installing, as relocation or removal of catalytic converters may not be legal in your area. Budget roughly $250–$400.
Short Tube Headers (Shorties)
Shorter primaries that connect at or near the factory catalytic converter location. Bolt to your existing emissions hardware — no cutting, no welding, no relocating cats.
👉 Our Ford Mustang shorty headers (260/289/302) — T304 mandrel-bent stainless construction, designed for straightforward bolt-on installation with standard hand tools.
Best for: Street-driven vehicles, daily drivers, anyone who wants noticeable improvement without turning a Saturday project into a multi-weekend ordeal. Gains are modest (5–15 HP), but throttle response alone makes a real difference in daily driving feel.
Advantages: Straightforward installation, retains factory emissions layout, rarely requires tuning. Budget roughly $150–$300.
Mid-Length Headers
Falls between the two extremes — longer than shorties, shorter than true long tubes. More top-end power than shorties, less installation headache than long tubes.
| Feature | Shorty | Mid-Length | Long Tube |
|---|---|---|---|
| Typical HP Gain | 5-15 HP | 10-18 HP | 15-25 HP |
| Power Band | Low-mid RPM | Mid-high RPM | High RPM |
| Installation | Easier | Moderate | More complex |
| Retains Factory Emissions | Yes | Varies | Often modifies or removes |
| Tune Required | Rarely | Sometimes | Recommended |
| Typical Price Range | $150-$300 | $200-$350 | $250-$400 |
Who Needs Exhaust Headers?
Performance Enthusiasts
If you already have or are planning a cold air intake, cat-back exhaust, or ECU tune, headers are the logical next piece of the puzzle. They amplify every other breathing modification. Most effective on naturally aspirated engines where exhaust flow is the main bottleneck holding back power.
Daily Drivers
Headers work fine on a street car — pick the right type. Shorty headers are the practical choice: easy install, keeps emissions gear intact, gives you improved throttle response without drawing unwanted attention.
Track and Race Vehicles
Long tube headers are standard equipment for track-day regulars and race builds. High-RPM gains translate to quicker lap times. Many race-specific headers also use lighter-gauge materials and optimized collector designs for maximum flow.
When Headers Might Not Be Worth It
If your car is leased, under warranty, or used strictly as basic transportation, headers are probably an unnecessary expense. If you drive a modern turbocharged vehicle, the turbocharger creates the biggest restriction in the exhaust system — upgrading the downpipe usually delivers more bang-for-buck than headers on a turbo setup.
Common Misconceptions
"Headers always add 30+ horsepower."
Reality: on a stock engine with no supporting mods, gains are usually 5–20 HP. Claims of 30+ almost always involve headers combined with a full exhaust, intake upgrade, and professional tune working together. Independent dyno tests confirm this pattern consistently.
"Headers will make my car too loud."
The muffler does most of the volume control. Keep your stock muffler and the change is mostly tone — deeper and more textured rather than ear-splittingly loud.
"You need a pro shop to install them."
Shorty headers are within reach of a competent DIYer with basic tools, a decent socket set, and a safe way to get under the car. Long tubes get more involved — unless you have experience and a well-equipped garage, having a shop do the install is reasonable.
Frequently Asked Questions
Are exhaust headers the same thing as exhaust manifolds?
No. An exhaust manifold is the factory-installed component, usually made of cast iron, that comes on your car from the dealer. Headers are an aftermarket replacement made from individual steel tubes, designed to improve exhaust flow compared to the stock unit. They serve the same basic purpose but take a very different — and generally more effective — approach.
Do headers make your car louder?
Yes, to an extent. Headers produce a deeper, more aggressive exhaust note compared to a stock cast-iron manifold. How much louder depends heavily on what's behind the headers — your muffler, resonator, and tailpipe configuration still do most of the volume control.
How much horsepower do headers actually add?
It varies. Shorty headers on a typical V8: 5–15 HP. Long tube headers on the same engine: 15–25 HP. Four-cylinder and V6 engines see smaller absolute gains. These figures assume a healthy, stock-ish engine. Pairing headers with an intake, cat-back, and proper tune pushes the total higher — but attributing all of it to headers alone isn't accurate.
Are headers legal where I live?
This is the single most important question before spending money, and the only correct answer is: it depends on your location and the specific part. Some aftermarket headers carry EPA certifications or CARB EO numbers making them legal for street use in certain jurisdictions. Many do not. Enforcement varies wildly by state and country. We strongly recommend confirming compliance with your local regulations before ordering or installing.
Do I need a tune after installing headers?
Shorty headers: Most people don't need one. Modern ECUs adapt well enough to handle the modest reduction in backpressure. Check engine light stays off, fuel trims stay in range.
Long tube headers: Yes, plan for a tune. Long tubes dramatically alter exhaust gas velocity and frequently change or eliminate O2 sensor positions. Without recalibrating, you're leaving measurable horsepower on the table and risking lean operation over time. This is what owners report consistently on forums like LS1Tech and Grassroots Motorsports.
Will headers change my fuel economy?
In theory, reduced backpressure means less wasted energy pumping exhaust, so efficiency should improve slightly — some owners report 1-2 MPG better during highway cruising. In practice, headers make the car more responsive and fun to drive, which tends to mean heavier accelerator use. Forum consensus across multiple platforms: most people end up with roughly the same economy as before, sometimes slightly worse. If saving on gas is the priority, headers aren't the mod that moves the needle.
Sources & References
- U.S. Environmental Protection Agency (EPA), "Tampering: Defeat Devices and Emissions Control Systems"
- SAE Technical Paper Series: "The Effect of Exhaust Header Design on Engine Performance" (SAE 2003-01-0771)
- Grassroots Motorsports Forum, "Are headers really needed?" — Owner-reported dyno data and real-world installation experiences

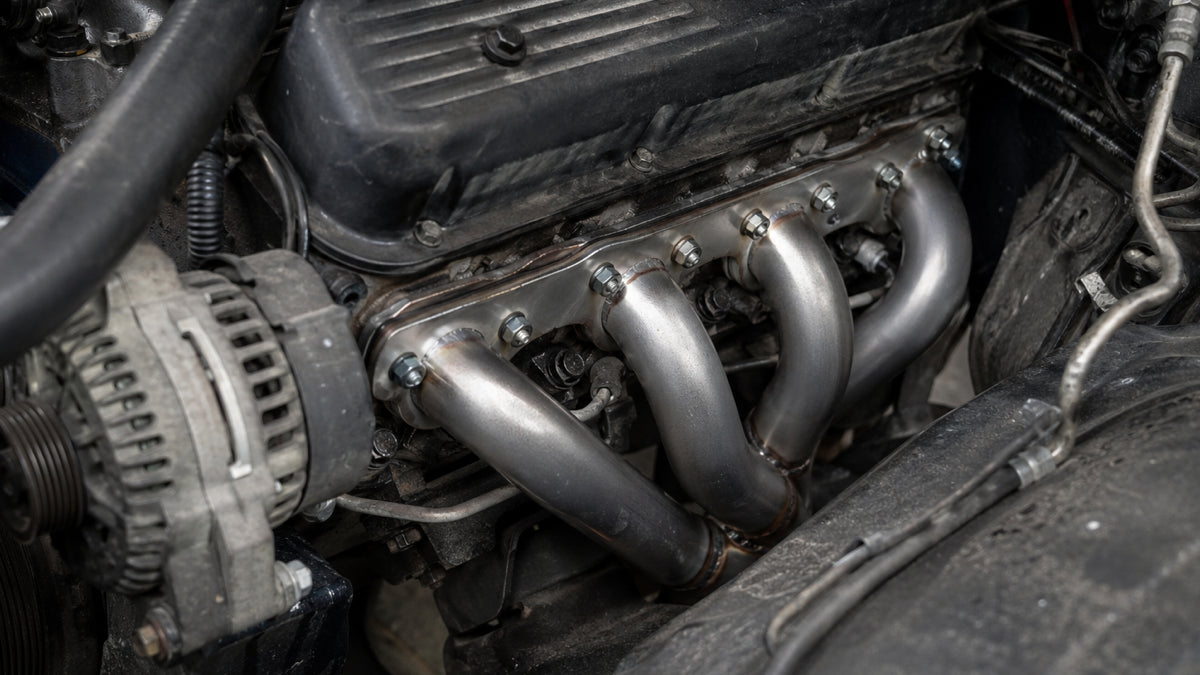

A clean long tube header installation on a GM V8 truck engine. Proper fitment means everything lines up without clearance issues.
